Aluminum reflector silver, individually anodized. Equipped with anti-reflective protective glass.

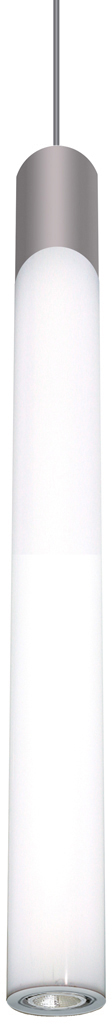

Luminaire with passive cooling system. Surface powder-coated in white, black or RAL. Luminaire housing made of acrylic, opal.
LED Type 13
Small Flux
low power
LED Type 14
Mid Flux
optimised power
LED Type 15
High Flux
high power
1680 mm
Ø 150 mm
Article
LED Type
3000 K
4000 K
Power
CRI 80
96400.
13
3610 lm
3740 lm
28 W
14
5060 lm
5240 lm
38 W
15
7160 lm
7450 lm
54 W
The values of the spotlight must be added to the values of the luminaire!
| Artikel | LED-Typ | 3000 K | 4000 K | Leistung | |
|---|---|---|---|---|---|
| CRI 80 | 96400. | 11 | 1280 lm | 1320 lm | 12 W |
| 12 | 1780 lm | 1820 lm | 17 W |
► Accessories
Adapter for EUTRAC track
Art.-No. 964x.-ETA
Art.-No. 964x.-ETA
| ► | Example Article-Number-Key |
Reflector angles for LED types
11-12
| S | Spot | 19° |
| M | Medium | 23° |
| F | Flood | 37° |
| XF | Super-Flood | 55° |
