Luminaire Configurator
Please make a selection in each field. Then click "Specific downloads & enquiry list" to get downloads for the configured luminaire, or to add the luminaire to the request list.
Downloads

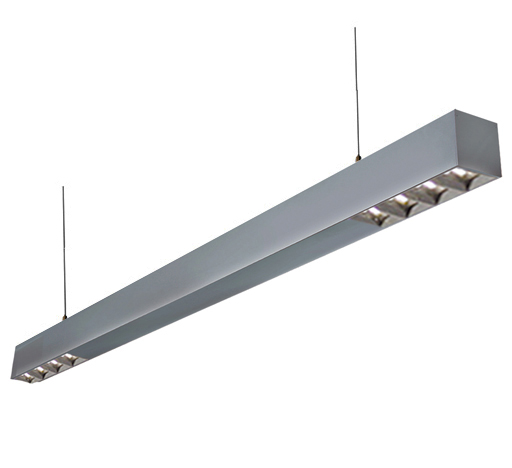

Direct distribution. With lens module with 50° or 80° grid at the ends of the luminaire.
Luminaire housing made of sharp-edged aluminum profile. Surface powder-coated in silver, white, black or RAL.
Suspended with quick clamping system, height adjustable without tools.
LED Type 71
Small Flux
low power
LED Type 72
Mid Flux
optimised power
LED Type 73
High Flux
high power
with 2 lens modules
L 590-1710 mm
Article
LED Type
2700 K
3000 K
4000 K
Power
Länge 590 mm
93342.
71
1350 lm
1450 lm
1530 lm
12 W
72
1990 lm
2130 lm
2250 lm
17 W
73
2300 lm
2460 lm
2600 lm
19 W
Länge 870 mm
93343.
71
1350 lm
1450 lm
1530 lm
12 W
72
1990 lm
2130 lm
2250 lm
17 W
73
2300 lm
2460 lm
2600 lm
19 W
Länge 1150 mm
93344.
71
1350 lm
1450 lm
1530 lm
12 W
72
1990 lm
2130 lm
2250 lm
17 W
73
2300 lm
2460 lm
2600 lm
19 W
with 4 lens modules
L 590-1710 mm
Article
LED Type
2700 K
3000 K
4000 K
Power
Länge 1430 mm
93345.
71
2710 lm
2910 lm
3070 lm
21 W
72
3980 lm
4270 lm
4510 lm
30 W
73
4600 lm
4930 lm
5200 lm
35 W
Länge 1710 mm
93346.
71
2710 lm
2910 lm
3070 lm
21 W
72
3980 lm
4270 lm
4510 lm
30 W
73
4600 lm
4930 lm
5200 lm
35 W
| ► | Example Article-Number-Key |
