Indirect distribution. Acrylic cover in opal.
Luminaire housing made of sharp-edged aluminum profile. Surface powder-coated in silver, white, black or RAL.
Compatible with Nordic/Global Pulse track. Feed-in via the on-site supply line through the rail profile. Current 700 mA, can also be switched to a lower current on the internal power supply.
LED Type 13
Small Flux
low power
LED Type 14
Mid Flux
optimised power
LED Type 15
High Flux
high power
H 76 mm
B 38 mm
L 590 mm
Article
LED Type
3000 K
4000 K
Power
Länge 590 mm
92962.
13
900 lm
940 lm
10 W
14
1270 lm
1320 lm
13 W
15
1800 lm
1870 lm
18 W
Länge 870 mm
92963.
13
1440 lm
1490 lm
14 W
14
2020 lm
2090 lm
19 W
15
2860 lm
2980 lm
26 W
Länge 1150 mm
92964.
13
2010 lm
2090 lm
19 W
14
2820 lm
2920 lm
25 W
15
3990 lm
4150 lm
35 W
Länge 1430 mm
92965.
13
2540 lm
2640 lm
23 W
14
3560 lm
3690 lm
31 W
15
5050 lm
5240 lm
43 W
Länge 1710 mm
92966.
13
3080 lm
3200 lm
27 W
14
4320 lm
4480 lm
36 W
15
6120 lm
6360 lm
51 W

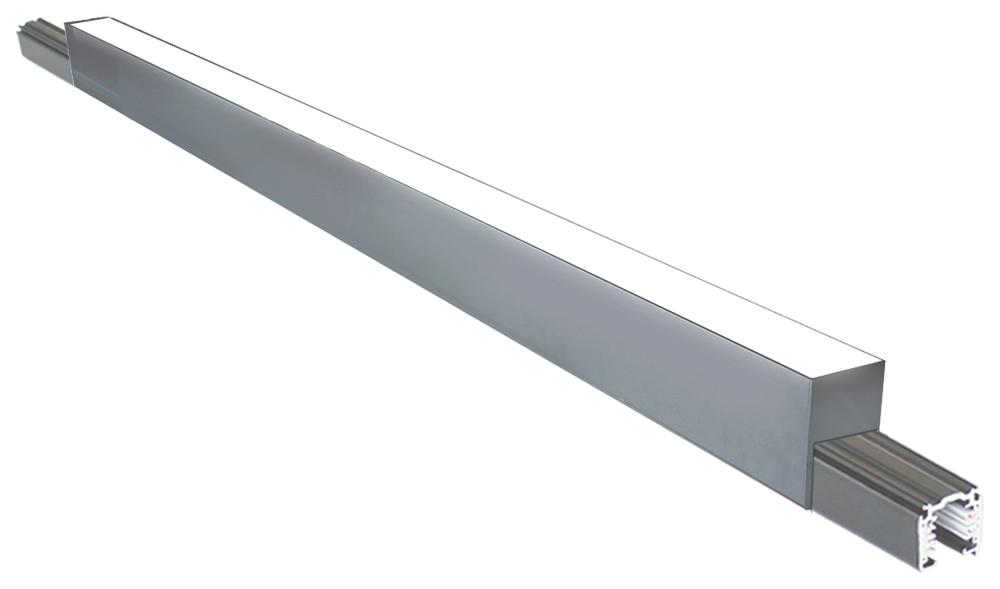

midiRail top light for Nordic/Global Pulse track

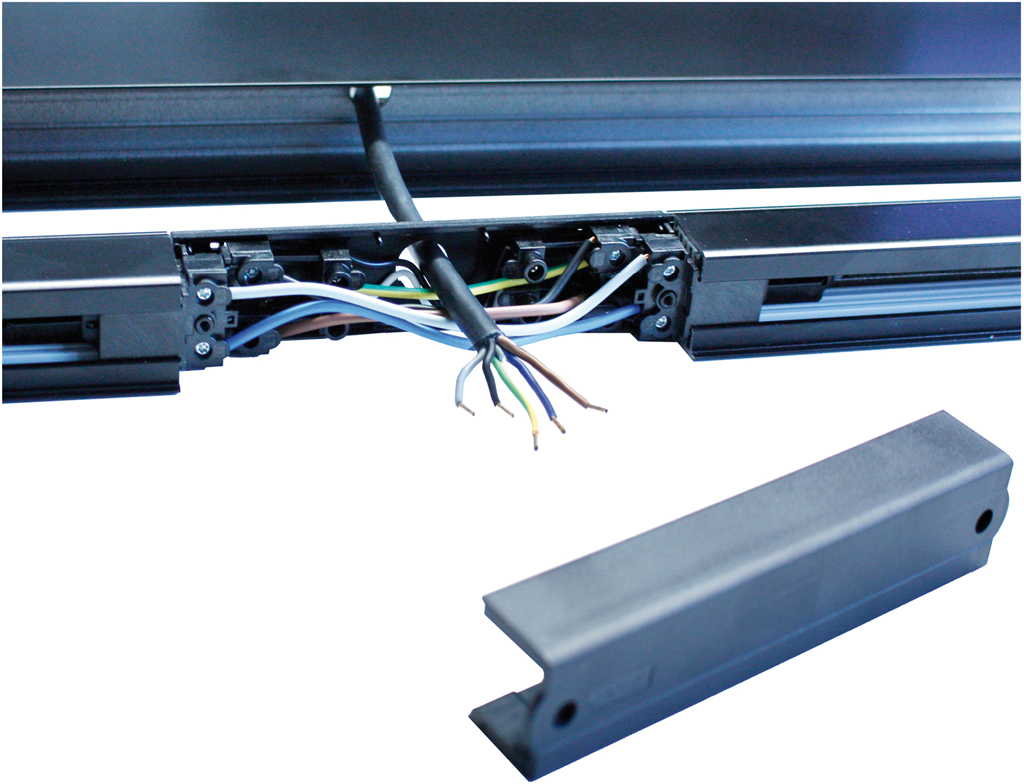

The midiRail attachment light is compatible with the Nordic/Global Pulse power rail. The output line is on the underside, in the center of the luminaire. The light is placed on the suspended track from above and connected to a central feed in the track.
