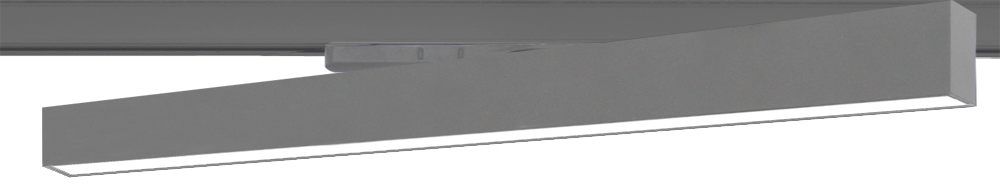

Direct distribution. Acrylic cover in opal.
Luminaire housing made of sharp-edged aluminum profile. Surface powder-coated in silver, white, black or RAL.
Power rail adapter in black or white.
Luminaire rotatable, 355°.
LED Type 13
Small Flux
low power
LED Type 14
Mid Flux
optimised power
LED Type 15
High Flux
high power
H 76 mm
B 38 mm
L 290-1130 mm
Article
LED Type
3000 K
4000 K
Power
Länge 290 mm
92821.
13
380 lm
390 lm
6 W
14
540 lm
550 lm
7 W
15
760 lm
790 lm
9 W
Länge 570 mm
92822.
13
770 lm
790 lm
9 W
14
1080 lm
1110 lm
11 W
15
1530 lm
1590 lm
15 W
Länge 850 mm
92823.
13
1150 lm
1190 lm
12 W
14
1620 lm
1670 lm
15 W
15
2290 lm
2380 lm
21 W
Länge 1130 mm
92824.
13
1540 lm
1590 lm
15 W
14
2160 lm
2230 lm
19 W
15
3060 lm
3180 lm
26 W
