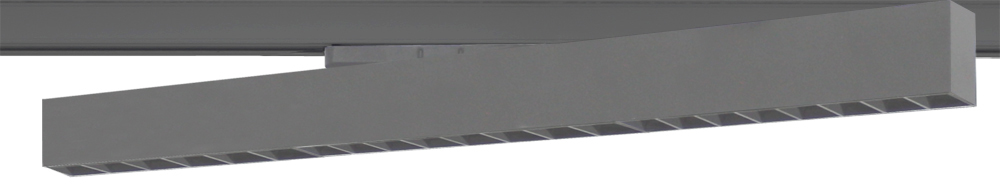

Direct distribution. With lens module with 50° or 80° grid.
Luminaire housing made of sharp-edged aluminum profile. Surface powder-coated in silver, white, black or RAL.
Power rail adapter in black or white.
Luminaire rotatable, 355°.
LED Type 71
Small Flux
low power
LED Type 72
Mid Flux
optimised power
LED Type 73
High Flux
high power
H 76 mm
B 38 mm
L 170-970 mm
Article
LED Type
2700 K
3000 K
4000 K
Power
Länge 330 mm
92812.
71
1350 lm
1450 lm
1530 lm
12 W
72
1990 lm
2130 lm
2250 lm
17 W
73
2300 lm
2460 lm
2600 lm
19 W
Länge 490 mm
92813.
71
2030 lm
2180 lm
2300 lm
16 W
72
2980 lm
3200 lm
3380 lm
23 W
73
3450 lm
3700 lm
3900 lm
27 W
Länge 650 mm
92814.
71
2710 lm
2910 lm
3070 lm
21 W
72
3980 lm
4270 lm
4510 lm
30 W
73
4600 lm
4930 lm
5200 lm
35 W
Länge 810 mm
92815.
71
3390 lm
3640 lm
3840 lm
25 W
72
4980 lm
5340 lm
5630 lm
37 W
73
5750 lm
6160 lm
6500 lm
43 W
Länge 970 mm
92816.
71
4070 lm
4370 lm
4600 lm
29 W
72
5970 lm
6410 lm
6760 lm
43 W
73
6900 lm
7400 lm
7810 lm
51 W
