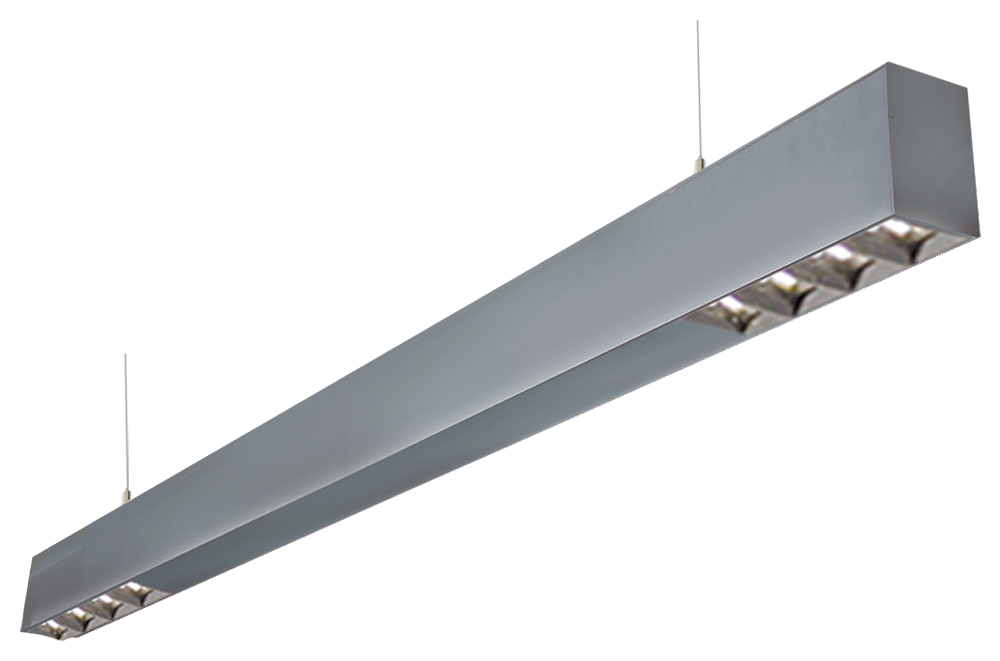

Direct/indirect distribution, with 2 lens modules with a 50° or 80° grid at both ends of the luminaire.
Luminaire housing made of sharp-edged aluminum profile. Surface powder-coated in silver, white, black or RAL.
Suspended with quick clamping system, height adjustable without tools.
LED Type 71
Small Flux
low power
LED Type 72
Mid Flux
optimised power
LED Type 73
High Flux
high power
with 2 lens modules
L
590-1710 mm
Article
LED Type
2700 K
3000 K
4000 K
Power
Länge 590 mm
92122.
71
2910 lm
3020 lm
3090 lm
31 W
72
4190 lm
4330 lm
4420 lm
44 W
73
5460 lm
5660 lm
5800 lm
55 W
Länge 870 mm
92123.
71
3650 lm
3790 lm
3890 lm
38 W
72
5200 lm
5400 lm
5530 lm
53 W
73
6900 lm
7180 lm
7380 lm
67 W
Länge 1150 mm
92124.
71
4370 lm
4560 lm
4690 lm
43 W
72
6220 lm
6480 lm
6660 lm
59 W
73
8330 lm
8710 lm
8970 lm
75 W
with 4 lens modules
L
590-1710 mm
Article
LED Type
2700 K
3000 K
4000 K
Power
Länge 1430 mm
92125.
71
6360 lm
6760 lm
7060 lm
46 W
72
9070 lm
9660 lm
10090 lm
64 W
73
11890 lm
12650 lm
13220 lm
84 W
Länge 1710 mm
92126.
71
7080 lm
7520 lm
7860 lm
51 W
72
10090 lm
10730 lm
11200 lm
70 W
73
13320 lm
14170 lm
14800 lm
92 W
