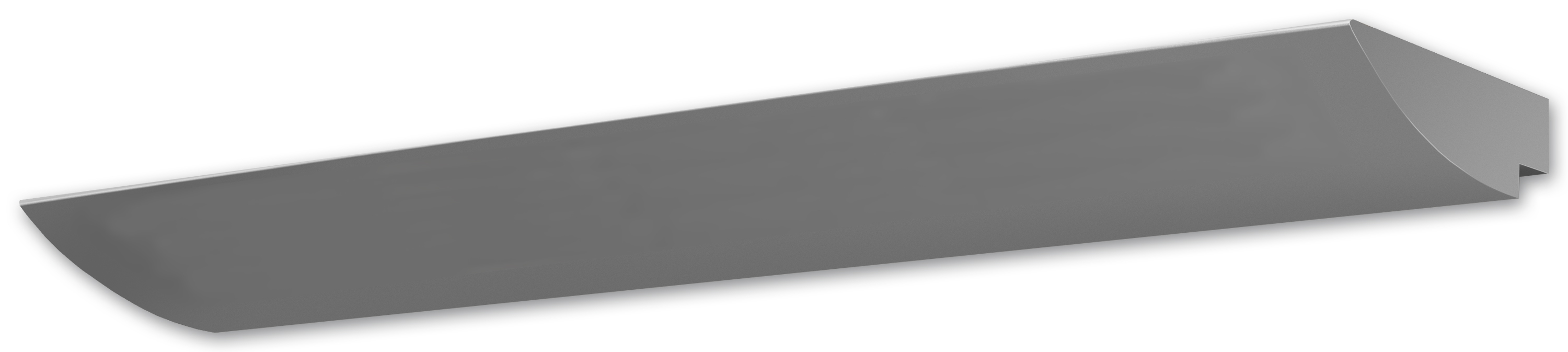

Scala wall luminaire, indirect
Luminaire Configurator
Please make a selection in each field. Then click "Specific downloads & enquiry list" to get downloads for the configured luminaire, or to add the luminaire to the request list.
Indirect distribution. Internal reflector, acrylic cover in opal.
Housing made of sheet steel, positively welded. Surface powder-coated in white, black or RAL.
Wired ready for connection. Complete with end plates. Delivery in one piece.
LED Type 13
Small Flux
low power
LED Type 14
Mid Flux
optimised power
LED Type 15
High Flux
high power
H 70 mm
L 585 mm
B 230 mm
Article
LED Type
3000 K
4000 K
Power
CRI 80
87400.
13
1310 lm
1360 lm
12 W
14
1840 lm
1900 lm
15 W
15
2600 lm
2700 lm
20 W
► | Example Article-Number-Key |
