Luminaire Configurator
Please make a selection in each field. Then click "Specific downloads & enquiry list" to get downloads for the configured luminaire, or to add the luminaire to the request list.
Downloads

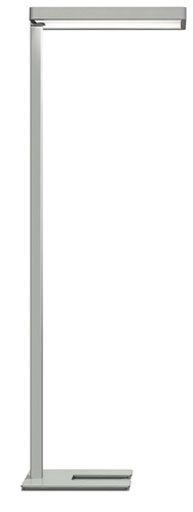

Direct/indirect distribution. Direct acrylic cover in microprismatic, indirect cover made of optical real glass.
Luminaire housing made of aluminum and steel. Surface powder-coated in white, black or RAL.
Luminaire completely closed with ready-to-connect wiring.
LED Type 13
Small Flux
low power
LED Type 14
Mid Flux
optimised power
LED Type 15
High Flux
high power
H 1950 mm
B 250 mm
L 600 mm
Article
LED Type
3000 K
4000 K
Power
Länge 600 mm
71100.
13
5240 lm
5440 lm
36 W
14
7340 lm
7610 lm
50 W
15
10400 lm
10810 lm
71 W
| ► | Example Article-Number-Key |
