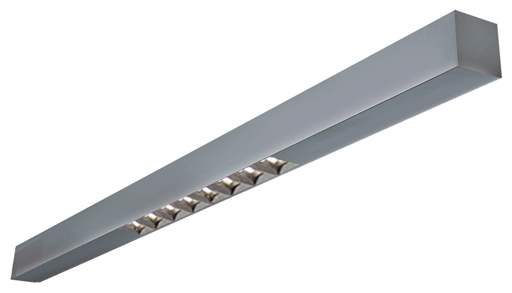

Direct distribution, with 2 lens modules with a 50° or 80° grid in the center of the luminaire.
Luminaire housing made of sharp-edged aluminum profile. Surface powder-coated in silver, white, black or RAL.
LED Type 71
Small Flux
low power
LED Type 72
Mid Flux
optimised power
LED Type 73
High Flux
high power
L 590-1710 mm
Article
LED Type
2700 K
3000 K
4000 K
Power
Länge 590 mm
18742.
71
1350 lm
1450 lm
1530 lm
12 W
72
1990 lm
2130 lm
2250 lm
17 W
73
2300 lm
2460 lm
2600 lm
19 W
Länge 870 mm
18743.
71
1350 lm
1450 lm
1530 lm
12 W
72
1990 lm
2130 lm
2250 lm
17 W
73
2300 lm
2460 lm
2600 lm
19 W
Länge 1150 mm
18744.
71
1350 lm
1450 lm
1530 lm
12 W
72
1990 lm
2130 lm
2250 lm
17 W
73
2300 lm
2460 lm
2600 lm
19 W
Länge 1430 mm
18745.
71
1350 lm
1450 lm
1530 lm
12 W
72
1990 lm
2130 lm
2250 lm
17 W
73
2300 lm
2460 lm
2600 lm
19 W
Länge 1710 mm
18746.
71
1350 lm
1450 lm
1530 lm
12 W
72
1990 lm
2130 lm
2250 lm
17 W
73
2300 lm
2460 lm
2600 lm
19 W
| ► | Example Article-Number-Key |
