Luminaire Configurator
Please make a selection in each field. Then click "Specific downloads & enquiry list" to get downloads for the configured luminaire, or to add the luminaire to the request list.
Downloads

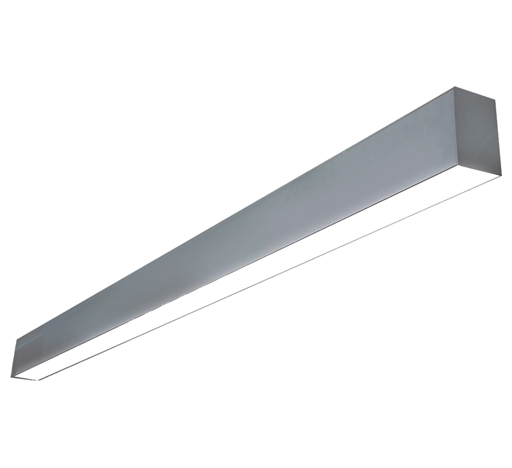

Direct distribution. Acrylic cover with satin finish.
Luminaire housing made of sharp-edged aluminum profile. Surface powder-coated in silver, white, black or RAL.
Wired ready for connection.
LED Type 13
Small Flux
low power
LED Type 14
Mid Flux
optimised power
LED Type 15
High Flux
high power
H 76 mm
B 38 mm
L 590-1710 mm
Article
LED Type
3000 K
4000 K
Power
Länge 590 mm
18632.
13
1150 lm
1200 lm
12 W
14
1620 lm
1680 lm
15 W
15
2290 lm
2380 lm
20 W
Länge 870 mm
18633.
13
1730 lm
1800 lm
16 W
14
2430 lm
2520 lm
21 W
15
3440 lm
3580 lm
29 W
Länge 1150 mm
18634.
13
2310 lm
2400 lm
20 W
14
3240 lm
3360 lm
27 W
15
4590 lm
4770 lm
37 W
Länge 1430 mm
18635.
13
2890 lm
3000 lm
24 W
14
4050 lm
4200 lm
33 W
15
5740 lm
5970 lm
46 W
Länge 1710 mm
18636.
13
3470 lm
3600 lm
28 W
14
4860 lm
5040 lm
38 W
15
6890 lm
7160 lm
54 W
The midiRail Wallwasher
LED Wallwasher
The first impression when entering a room is determined by its walls - one of the most difficult tasks in lighting technology is the uniform illumination of walls. With our newly developed midiRail wallwasher, we have created a powerful tool that masters these tasks excellently. Equipped with LEDs in SMD technology, with an excellent service life (L80/B10).
Lighting Technology
Regardless of its external shape, this wallwasher delivers a highly asymmetrical light distribution thanks to the reflector technology developed specifically for this purpose.
| ► | Example Article-Number-Key |
