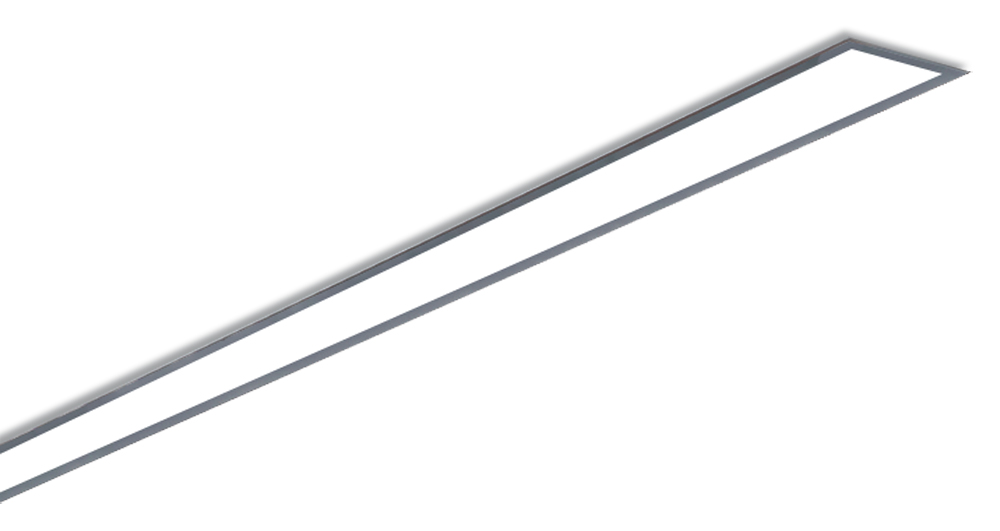

midiRail strip lighting with frame, prismatic
Luminaire Configurator
Please make a selection in each field. Then click "Specific downloads & enquiry list" to get downloads for the configured luminaire, or to add the luminaire to the request list.
Direct distribution. Acrylic cover in prismatic.
Luminaire housing made of sharp-edged aluminum profile. Surface powder-coated in silver, white, black or RAL.
LED Type 13
Small Flux
low power
LED Type 14
Mid Flux
optimised power
LED Type 15
High Flux
high power
H 68 mm
B 55 mm
L 610-1730 mm
Article
LED Type
3000 K
4000 K
Power
Länge 610 mm
17422.
13
1150 lm
1200 lm
12 W
14
1620 lm
1680 lm
15 W
15
2290 lm
2380 lm
20 W
Länge 890 mm
17423.
13
1730 lm
1800 lm
16 W
14
2430 lm
2520 lm
21 W
15
3440 lm
3580 lm
29 W
Länge 1170 mm
17424.
13
2310 lm
2400 lm
20 W
14
3240 lm
3360 lm
27 W
15
4590 lm
4770 lm
37 W
Länge 1450 mm
17425.
13
2890 lm
3000 lm
24 W
14
4050 lm
4200 lm
33 W
15
5740 lm
5970 lm
46 W
Länge 1730 mm
17426.
13
3470 lm
3600 lm
28 W
14
4860 lm
5040 lm
38 W
15
6890 lm
7160 lm
54 W
