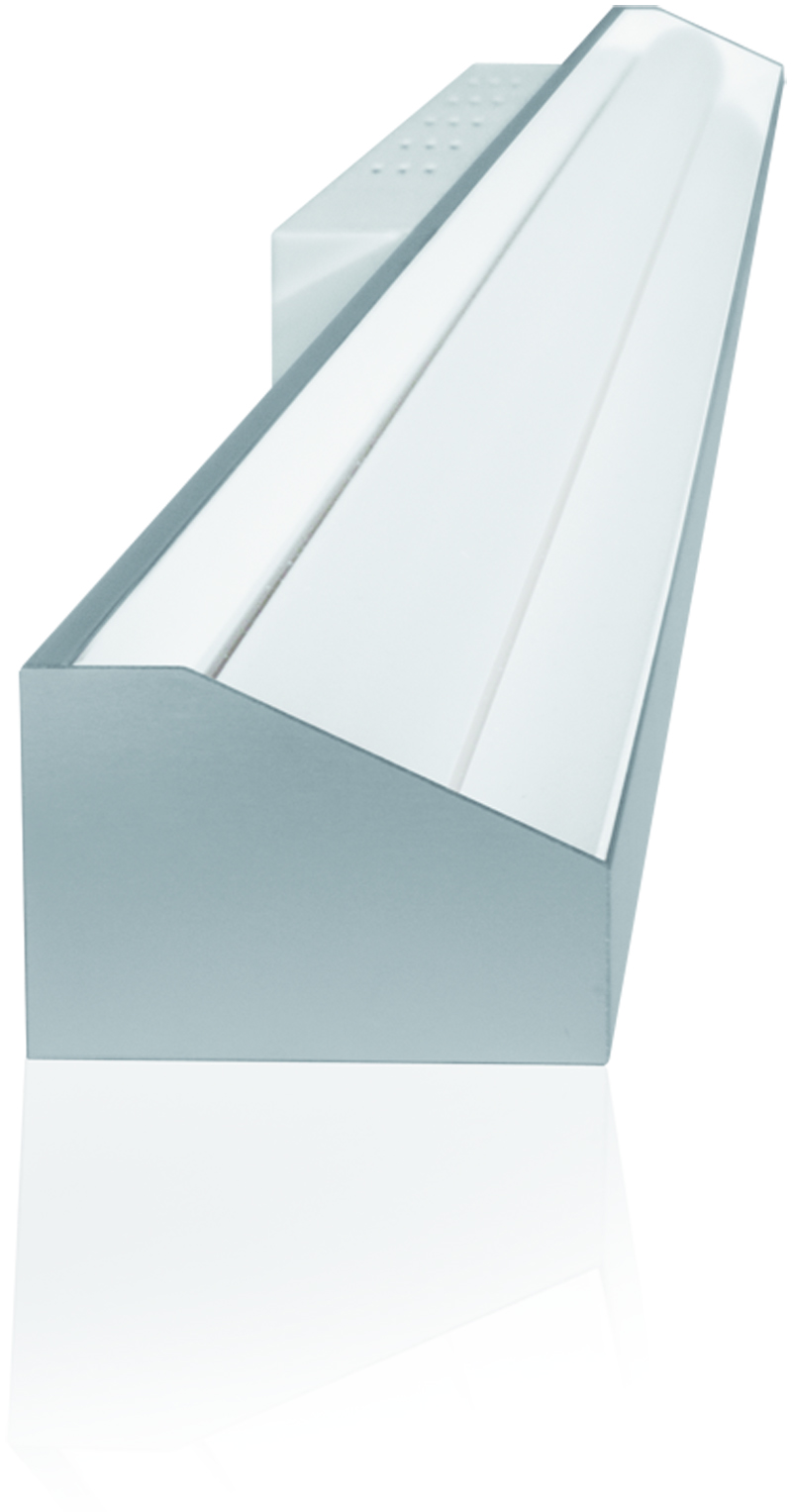

Cove light with wide-beam lighting technology. Asymmetrically wide-beam reflector. Covered on the top with a matt diffuser.
Ready for connection in a closed aluminum housing. Flat end plate for seamless arrangement.
Luminaire completely closed with ready-to-connect wiring. Separate power supply, optionally dimmable / DALI.
LED Type 13
Small Flux
low power
LED Type 14
Mid Flux
optimised power
LED Type 15
High Flux
high power
H 36 mm
B 80 mm
Article
LED Type
3000 K
4000 K
Power
Länge 570 mm
15102.
13
1090 lm
1130 lm
12 W
14
1530 lm
1590 lm
15 W
15
2170 lm
2250 lm
20 W
Länge 850 mm
15103.
13
1640 lm
1700 lm
16 W
14
2300 lm
2380 lm
21 W
15
3250 lm
3380 lm
29 W
Länge 1130 mm
15104.
13
2180 lm
2270 lm
20 W
14
3060 lm
3180 lm
27 W
15
4340 lm
4510 lm
37 W
Länge 1410 mm
15105.
13
2730 lm
2840 lm
24 W
14
3830 lm
3970 lm
33 W
15
5430 lm
5640 lm
46 W
Länge 1690 mm
15106.
13
3280 lm
3400 lm
28 W
14
4600 lm
4770 lm
38 W
15
6510 lm
6770 lm
54 W
