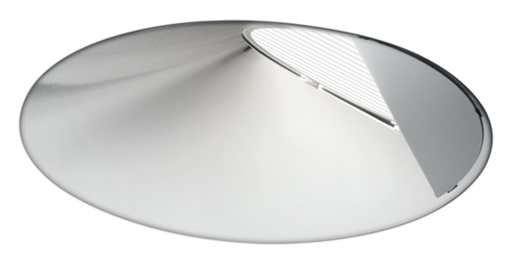

Aluminum reflector silver, individually anodized. Soft, pleasant light thanks to the diffuser disc.
Installation housing made of sheet steel. For plastering installation or installation with a shadow gap. Surface powder-coated in white, black or RAL.
LED Type 13, 16, 23, 26
Small Flux
low power
LED Type 14, 17, 24, 27
Mid Flux
optimised power
LED Type 15, 25
High Flux
high power
ET 130 mm
DA Ø 190 mm
AD Ø 160 mm
Article
Ø
LED Type
2700 K
3000 K
3500 K
4000 K
Power
CRI 80
12970.
160 mm
13
1370 lm
1460 lm
1490 lm
1490 lm
14 W
14
1920 lm
2040 lm
2090 lm
2090 lm
19 W
15
2610 lm
2780 lm
2840 lm
2850 lm
26 W
16
1780 lm
1900 lm
1940 lm
1950 lm
17 W
17
2490 lm
2640 lm
2710 lm
2710 lm
23 W
CRI 90
12970.
160 mm
23
1130 lm
1180 lm
1220 lm
1250 lm
14 W
24
1580 lm
1650 lm
1710 lm
1740 lm
19 W
25
2150 lm
2250 lm
2330 lm
2380 lm
26 W
26
1530 lm
1610 lm
1590 lm
1620 lm
17 W
27
2130 lm
2240 lm
2220 lm
2260 lm
23 W
Don't forget the plaster frame!To mount this light you need a plaster frame.
Please order:
| 12971.98 | Plaster frame, 1-flame | DA Ø 190 mm |
Trimless wall washer
Plaster installation with separate installation frame. Optionally for flush or recessed ceiling installation. To simplify installation, the plastering frame is adapted to the specific installation situation (e.g. installation depth). Fix the plastering frame with drywall screws in the ceiling opening created by the customer. The work on the ceiling system should be carried out by a specialist company. The visible end of the luminaire is the narrow surrounding reflector edge with a joint.
12980
12970, tirmless
