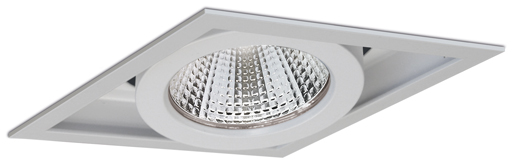

Single-flame version with anti-reflective protective glass. Aluminum reflector silver, individually anodized. Reflector can be changed without tools.
Passive cooling system made of aluminum. Luminaire housing made of aluminum and steel. Surface powder-coated in white, black or RAL.
Lamp head can be swiveled on a gimbal, 30°/35°.
LED Type 16, 26
Small Flux
low power
LED Type 17, 27
Mid Flux
optimised power
LED Type 18, 28
High Flux
high power
ET 145 mm
160 mm
160 mm
DA 147 x 147 mm
160 mm
Article
LED Type
2700 K
3000 K
3500 K
4000 K
Power
CRI 80
12380.
16
2040 lm
2170 lm
2220 lm
2230 lm
17 W
17
2850 lm
3030 lm
3100 lm
3110 lm
23 W
18
4230 lm
4490 lm
4600 lm
4610 lm
33 W
CRI 90
12380.
26
1750 lm
1840 lm
1830 lm
1860 lm
17 W
27
2440 lm
2560 lm
2540 lm
2590 lm
23 W
28
3620 lm
3800 lm
3780 lm
3850 lm
33 W
| ► | Example Article-Number-Key |
Reflector angles for LED types
16-18, 26-28
| S | Spot | 19° |
| M | Medium | 23° |
| XM | Medium wide | 28° |
| F | Flood | 37° |
| XF | Super-Flood | 60° |
