Luminaire Configurator
Please make a selection in each field. Then click "Specific downloads & enquiry list" to get downloads for the configured luminaire, or to add the luminaire to the request list.
Downloads
With anti-reflective protective glass. Aluminum reflector silver, individually anodized.
Passive cooling system made of aluminum. Luminaire housing made of aluminum and steel. Suface powder-coated in white, black or RAL.
Lamp head can be swiveled on a gimbal, 28°/35°.
LED Type 16, 26
Small Flux
low power
LED Type 17, 27
Mid Flux
optimised power
LED Type 18, 28
High Flux
high power
LED types 16-18, 26-28
ET 140 mm
DA Ø 130 mm
AD Ø 110 mm
Article
Ø
LED Type
2700 K
3000 K
3500 K
4000 K
Power
CRI 80
12370.
110 mm
16
2040 lm
2170 lm
2220 lm
2230 lm
17 W
17
2850 lm
3030 lm
3100 lm
3110 lm
23 W
18
4230 lm
4490 lm
4600 lm
4610 lm
33 W
CRI 90
12370.
110 mm
26
1750 lm
1840 lm
1830 lm
1860 lm
17 W
27
2440 lm
2560 lm
2540 lm
2590 lm
23 W
28
3620 lm
3800 lm
3780 lm
3850 lm
33 W
LED types 13-15, 23-25
ET 140 mm
DA Ø 130 mm
AD Ø 110 mm
Article
Ø
LED Type
2700 K
3000 K
3500 K
4000 K
Power
CRI 80
12370.
110 mm
13
1570 lm
1670 lm
1710 lm
1710 lm
14 W
14
2200 lm
2330 lm
2390 lm
2390 lm
19 W
15
2990 lm
3180 lm
3250 lm
3260 lm
26 W
CRI 90
12370.
110 mm
23
1290 lm
1350 lm
1400 lm
1430 lm
14 W
24
1810 lm
1890 lm
1960 lm
2000 lm
19 W
25
2470 lm
2580 lm
2670 lm
2720 lm
26 W
Don't forget the plaster frame!To mount this light you need a plaster frame.
Please order:
| 12371.98 | Plaster frame, 1-flame | DA Ø 130 mm |

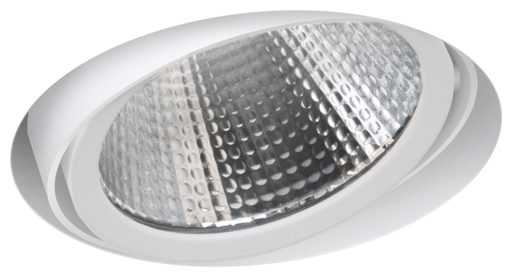

Trimless recessed spotlight
Plaster installation with separate installation frame. Optionally for flush or recessed ceiling installation.
12360
12370, tirmless
| ► | Example Article-Number-Key |
Reflector angles for LED types
13-15, 23-25
| XS | Super-Spot | 12° |
| S | Spot | 19° |
| M | Medium | 23° |
| F | Flood | 37° |
| XF | Super-Flood | 60° |
Reflector angles for LED types
16-18, 26-28
| S | Spot | 19° |
| M | Medium | 23° |
| XM | Medium wide | 28° |
| F | Flood | 37° |
| XF | Super-Flood | 60° |
