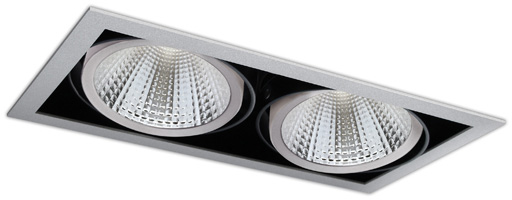

Twp-flame version with anti-reflective protective glass. Aluminum reflector silver, individually anodized. Reflector can be changed without tools.
Passive cooling system made of aluminum. Luminaire housing made of aluminum and steel. Surface powder-coated in white, black or RAL.
Lamp head can be swiveled on a gimbal, 25°/35°.
LED Type 16, 26
Small Flux
low power
LED Type 17, 27
Mid Flux
optimised power
LED Type 18, 28
High Flux
high power
ET 140 mm
148 mm
148 mm
DA 260 x 130 mm
275 mm
Article
LED Type
2700 K
3000 K
3500 K
4000 K
Power
CRI 80
12242.
16
4090 lm
4350 lm
4450 lm
4460 lm
31 W
17
5700 lm
6060 lm
6200 lm
6220 lm
42 W
18
8460 lm
8990 lm
9200 lm
9220 lm
63 W
CRI 90
12242.
26
3500 lm
3680 lm
3660 lm
3720 lm
31 W
27
4880 lm
5130 lm
5090 lm
5190 lm
42 W
28
7240 lm
7610 lm
7560 lm
7700 lm
63 W
* Values per flame!
| ► | Example Article-Number-Key |
Reflector angles for LED types
16-18, 26-28
| S | Spot | 19° |
| M | Medium | 23° |
| XM | Medium wide | 28° |
| F | Flood | 37° |
| XF | Super-Flood | 60° |
