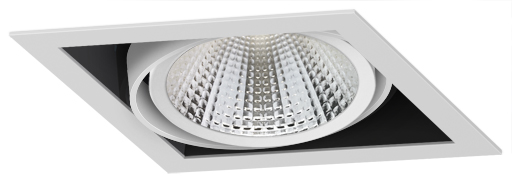

Single-flame version with anti-reflective protective glass. Aluminum reflector silver, individually anodized.
Passive cooling system made of aluminum. Luminaire housing made of aluminum and steel. Surface powder-coated in white, black or RAL.
Lamp head can be swiveled on a gimbal, 30°/35°.
LED Type 13, 23
Small Flux
low power
LED Type 14, 24
Mid Flux
optimised power
LED Type 15, 25
High Flux
high power
ET 140 mm
125 mm
125 mm
DA 112 x 112 mm
125 mm
Article
LED Type
2700 K
3000 K
3500 K
4000 K
Power
CRI 80
12200.
13
1570 lm
1670 lm
1710 lm
1710 lm
14 W
14
2200 lm
2330 lm
2390 lm
2390 lm
19 W
15
2990 lm
3180 lm
3250 lm
3260 lm
26 W
CRI 90
12200.
23
1290 lm
1350 lm
1400 lm
1430 lm
14 W
24
1810 lm
1890 lm
1960 lm
2000 lm
19 W
25
2470 lm
2580 lm
2670 lm
2720 lm
26 W
| ► | Example Article-Number-Key |
Reflector angles for LED types
13-15, 23-25
| XS | Super-Spot | 12° |
| S | Spot | 19° |
| M | Medium | 23° |
| F | Flood | 37° |
| XF | Super-Flood | 55° |
