350°
350°
Accessories for track spotlights
Pure experience and good visibility
Well-planned exhibition lighting ensures an attractive and exciting presentation of the art objects. A through-composed dramaturgy increases the experience and promotes attention. The light literally defines highlights by highlighting selected exhibits.
Annoying reflections and shadows on images and objects must be avoided at all costs. What is important here is the choice of the luminaire position, the appropriate beam characteristics, an appropriate luminous flux and, if necessary, accessories such as louvres or covers.
Directly dimmable
The ability to dim each luminaire individually opens up additional lighting planning flexibility. In this way, individual scenarios can be realized for individual exhibition areas or objects. If the presentations are changed or redesigned, the lighting levels can easily be adjusted as needed. Tube track spotlights can be dimmed either via a DALI ballast or directly on the spotlight (direct-dim).
Lens elliptical
07510.01
For the elliptical distribution of the light cone.
Anti-glare ring
xxxxx.78 Cross baffle
Soft lens filter
07510.02
For smooth transitions between light and dark.
Gate flaps
xxxxx.70
Color filters
07520.01 blue
07520.02 red
07520.03 yellow
Honeycomb grid
07550.01 Ø 65 mm
07550.02 Ø 67 mm
Anti-glare ring
xxxxx.76 asymmetrical
xxxxx.77 symmetrical
The accessories are assigned to the lamp used. For assignment purposes, the placeholders are “xxxxx.” against the item no. replace the lamp used.
Reflector technology
As standard, the lights are supplied with a reflector with flood beam characteristics (37° beam angle). Five additional reflectors with different beam angles are optionally available. The reflectors are interchangeable, not just within this series of lights, but within the entire product family. This means: The reflector from a track spotlight can also be used in a recessed spotlight and vice versa.
Reflector selection:
| XS | = Super-Spot |
| S | = Spot |
| M | = Medium |
| XM | = Medium breit |
| F | = Flood |
| XF | = Super-Flood |

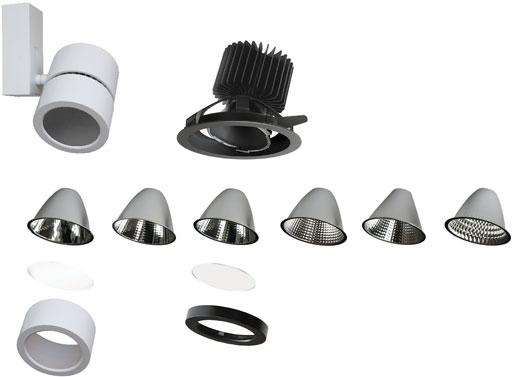

Interchangeable optics
We listened! We responded to our customers’ ideas and suggestions. The result of our development work are spotlights that, in addition to efficient COB (chip-on-board) LED arrays and an effective passive cooling system, also have a very special feature: interchangeable reflectors.
The reflectors can be exchanged without tools, even when the light is installed (Super-Spot lighting technology only with LEDs type 13-15, 23-25, 33-35, LES 13).
This means that the radiation characteristics of the luminaire can be changed at any time and you can react quickly to changing requirements in the presentation of goods. The costs of the changeover can be reduced significantly.
Zooom spotlight extension
The tool-free “Zooom” adapter for our track spotlights enables different applications with your existing lights. The adapter fits all TUBE 95 spotlights.
Selective product staging or wide beams of light for illumination can be flexibly varied with a simple twist.
| Article-No. | Adapter |
| 07530.10. | Spotlight-Adapter ZOOOM for LED types 11, 12 beam angle 7°-35° |
| 07530.13. | Spotlight-Adapter ZOOOM for LED types 13, 14, 15 beam angle 10°-40° |
| 07530.18. | Spotlight-Adapter ZOOOM for LED types 16, 17, 18 beam angle 12°-45° |
| ► | Example Article-Number-Key |
Reflector angles for LED types
13-15, 23-25

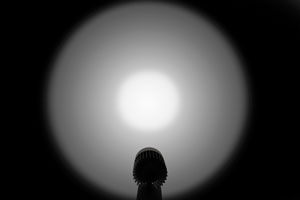

| XS | Super-Spot | 12° |

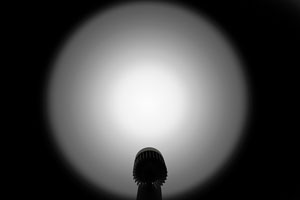

| S | Spot | 19° |

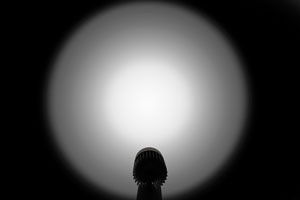

| M | Medium | 23° |

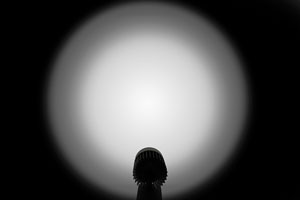

| F | Flood | 37° |
| XF | Super-Flood | 55° |
Reflector angles for LED types
16-18, 26-28
| S | Spot | 19° |
| M | Medium | 23° |

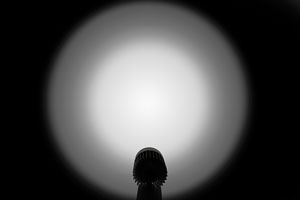

| XM | Medium wide | 28° |
| F | Flood | 37° |

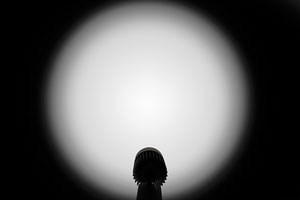

| XF | Super-Flood | 60° |
