Luminaire Configurator
Please make a selection in each field. Then click "Specific downloads & enquiry list" to get downloads for the configured luminaire, or to add the luminaire to the request list.
Downloads

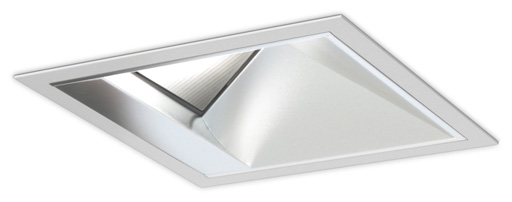

Aluminum reflector silver, individually anodized. Soft, pleasant light thanks to the diffuser disc.
Installation housing made of sheet steel. Filigree frame for installation in sawn ceiling openings. Surface powder-coated in white, black or RAL.
LED Type 13, 16, 23, 26
Small Flux
low power
LED Type 14, 17, 24, 27
Mid Flux
optimised power
LED Type 15, 25
High Flux
high power
ET 160 mm
180 mm
180 mm
DA 165 x 165 mm
180 mm
Article
LED Type
2700 K
3000 K
3500 K
4000 K
Power
CRI 80
10990.
13
1050 lm
1120 lm
1140 lm
1150 lm
14 W
14
1470 lm
1560 lm
1600 lm
1600 lm
19 W
15
2000 lm
2130 lm
2180 lm
2180 lm
26 W
16
1370 lm
1450 lm
1490 lm
1490 lm
17 W
17
1910 lm
2030 lm
2080 lm
2080 lm
23 W
CRI 90
10990.
23
870 lm
900 lm
940 lm
960 lm
14 W
24
1210 lm
1270 lm
1310 lm
1340 lm
19 W
25
1650 lm
1730 lm
1790 lm
1820 lm
26 W
26
1170 lm
1230 lm
1220 lm
1240 lm
17 W
27
1630 lm
1720 lm
1700 lm
1740 lm
23 W
| ► | Example Article-Number-Key |
