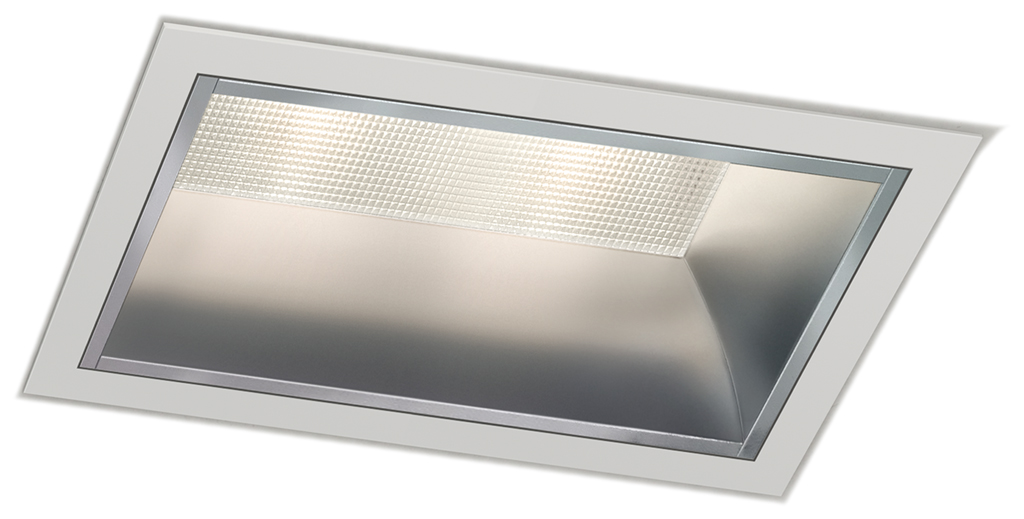

Aluminum reflector silver, individually anodized. Beam angle Spot 19°, Medium 23° or Flood 37°.
Installation housing made of sheet steel, with filigree frame for installation in sawn ceiling openings. Surface powder-coated in silver, white, black or RAL.
LED Type 13, 23
Small Flux
low power
LED Type 14, 24
Mid Flux
optimised power
LED Type 15, 25
High Flux
high power
double flame
RD 160 mm
100 mm
100 mm
CO 165 x 86 mm
180 mm
Article
LED Type
2700 K
3000 K
3500 K
4000 K
Power
CRI 80
10972.
13
1290 lm
1370 lm
1410 lm
1410 lm
14 W
14
1810 lm
1920 lm
1970 lm
1970 lm
19 W
15
2460 lm
2620 lm
2680 lm
2690 lm
26 W
CRI 90
10972.
23
1070 lm
1110 lm
1150 lm
1180 lm
14 W
24
1490 lm
1560 lm
1620 lm
1650 lm
19 W
25
2030 lm
2120 lm
2200 lm
2240 lm
26 W
* Values per flame!
