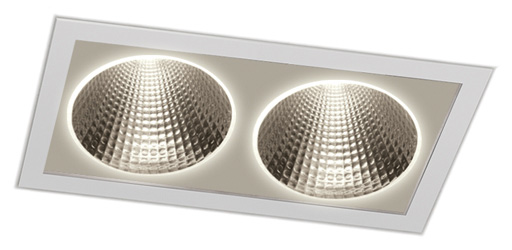

Two-flame version with anti-reflective protective glass. Aluminum reflector silver, individually anodized.
Passive cooling system made of aluminum. Luminaire housing made of aluminum and steel. Surface powder-coated in white, black or RAL.
LED Type 13, 23
Small Flux
low power
LED Type 14, 24
Mid Flux
optimised power
LED Type 15, 25
High Flux
high power
ET 140 mm
100 mm
100 mm
DA 86 x 165 mm
180 mm
Article
LED Type
2700 K
3000 K
3500 K
4000 K
Power
CRI 80
10942.
13
3140 lm
3340 lm
3420 lm
3430 lm
25 W
14
4400 lm
4670 lm
4780 lm
4790 lm
35 W
15
5990 lm
6360 lm
6510 lm
6530 lm
49 W
CRI 90
10942.
23
2590 lm
2710 lm
2810 lm
2860 lm
25 W
24
3630 lm
3790 lm
3930 lm
4000 lm
35 W
25
4940 lm
5160 lm
5350 lm
5450 lm
49 W
* Values per flame!
| ► | Example Article-Number-Key |
Reflector angles for LED types
13-15, 23-25
| XS | Super-Spot | 12° |
| S | Spot | 19° |
| M | Medium | 23° |
| F | Flood | 37° |
| XF | Super-Flood | 55° |
